EuroMat® TTEM Checkers temporary ground protection mats Chevron/Pedestrian
Art. no: TTEM-chev-ped
Please share this article with others
Copy this link. After this you can paste and share it.
Product description

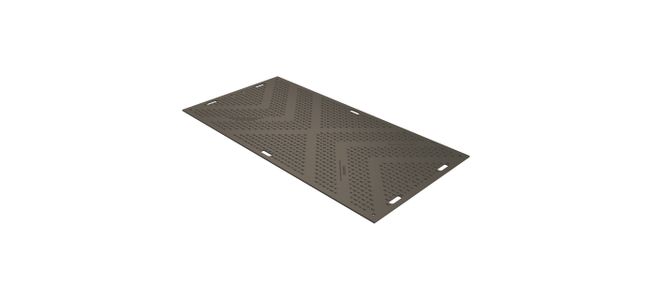

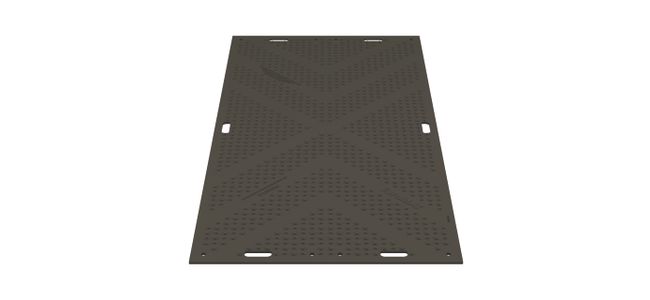

Medium duty 12 mm solid ground protection mat with handholds made from 100% recycled HDPE.
Surface: Chevron/Pedestrian
Quickly go to
Overview
Product Features
- 100% recycled High Density Polyethylene (HDPE)
- Load bearing capacity up to 120 tonnes*
- Unique chevron traction® surface for maximum grip
- Low profile surface option for pedestrian walkways and outdoor events
- Man-deployable thanks to its lightweight design
- Hand holes for ease of handling – Fast and easy to install
- Moulds to uneven or undulating ground conditions due to its flexible design
Product description
EuroMat® is a market leading medium duty ground protection mat designed as an ideal man-handleable solution for a wide range of applications including temporary roadways, work pads, depot storage areas or as pedestrian access. EuroMat significantly reduces damage to ecosensitive areas, avoiding the need for reinstatement once the project is complete. Thanks to its flexible design, EuroMat is able to follow the contours of undulating or sloping ground conditions. Light in weight at just 35 kg, EuroMat has strategically positioned hand holes for ease of use when handling. EuroMat is fast and easy to offload and install, easily deployed by a two-person team. The unique chevron traction® surface design delivers superior grip and improved forward motion of heavy equipment or vehicles and reduces side way slippage, even in the most challenging weather or ground conditions. Applications: Construction, civil engineering and ground work Temporary access and roadways Pedestrian walkways Emergency access routes Utilities and infrastructure maintenance Golf course and sports field maintenance Sports and leisure events An optional low profile surface on the reverse of the mat makes EuroMat ideal for use in pedestrian walkways. EuroMat has a range of connector options available to suit any ground conditions including 2 and 4-way connectors, flex connectors and fast fit connectors for quicker installations.
Selling Points
- Fast and easy to install
- Load bearing capacity up to 120 tonnes*
- Unique chevron traction® surface for maximum grip
- Hand holes for ease of deployment and installation
- Moulds to uneven or undulating ground conditions due to its flexible design
Documentation & video
- TTEM_Checkers_Specification_Document_EN.pdf
- TTEM_Checkers_Specification_Document_DE.pdf
- TTEM_Checkers_Specification_Document_NL.pdf
- TTEM_Checkers_Specification_Document_FR.pdf
- TTEM_Checkers_Specification_Document_IT.pdf
- TTEM_Checkers_Specification_Document_PT.pdf
- TTEM_Checkers_Specification_Document_ES.pdf

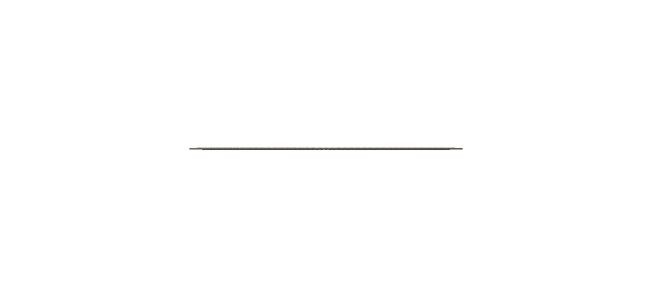

Medium-duty 12-mm thick solid ground protection mat with handholds made from 100% recycled HDPE
-
Hand holes on all sides
Hand holes on all sides allow for ease of handling making it easy to maneuver into position by two persons
-
Chevron Traction® surface
Unique chevron traction® surface ensures maximum grip
-

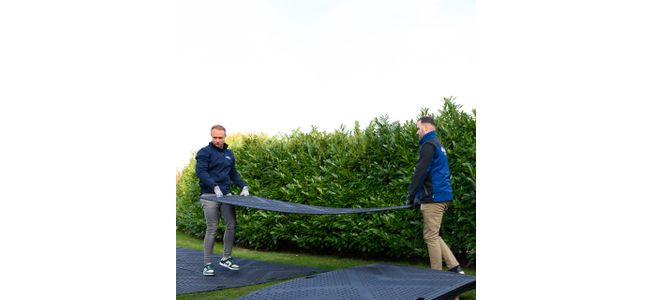

Easily deployable thanks to its lightweight design
At just 35 kg, the EuroMat is easily deployed and maneuvered into place by two persons
-
Low profile design
Low profile for pedestrian walkways and outdoor events to reduce tripping hazards
Technical specifications
General specifications
Colour | Black |
---|---|
Brand | Checkers |
Sub brand | TuffTrak™ |
Edges | No borders |
Material | Polyethylene |
Process | Compression Moulding |
Usage Intensity | Medium duty |
Instructions
Cleaning Instructions | Hose off with water |
---|---|
Cleaning and Maintenance | Hose off with water |
Recommended use | For use as temporary roadways, pedestrian pathways, work areas for plant and machinery, drilling rigs, depot or storage areas. |
Remark | *Load bearing capacity is subject to ground conditions. Sizing is subject to a manufacturing variance of +/- 5%. |
